Built in CAD.
Made to move.

I’m Justin Yin. This is a closer look at the robot systems I designed for FRC: from individual mechanisms to the full assembly, with the actual CAD files behind the work.

Explore the work See the source files
01 / FULL ROBOTORIGINAL CAD VIEW

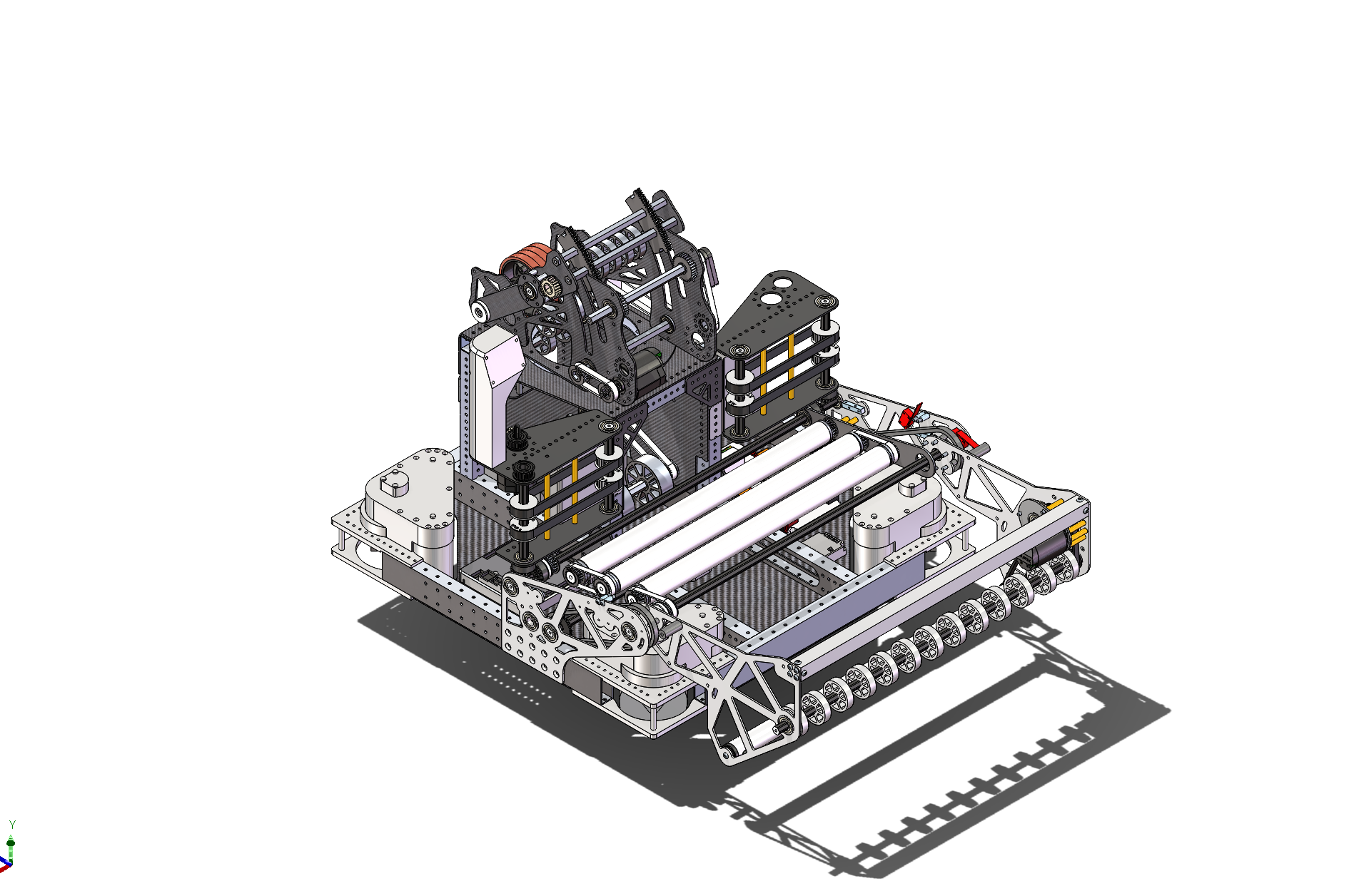

Original CAD screenshot of Justin Yin's FRC robot assembly, viewed from the front and side.
2026 ROBOT ASSEMBLYMORE VIEWS BELOW
SCROLL TO DISCOVERDESIGN / ITERATION / EVIDENCE
01 / THE WORK

A robot is more than a final render.

The design record matters. My source archive contains native SolidWorks assemblies, STEP exports, manufacturing files, and multiple saved versions of the 2026 robot. This site shows the mechanisms and keeps the underlying files within reach.

INTAKETURRETHOPPERCLIMBFULL ASSEMBLY

03 / SELECTED MECHANISMS

Inside the robot.

Each design thread is grounded in the supplied CAD archive. The images marked “STEP projection” are generated from geometric points in the actual export files.

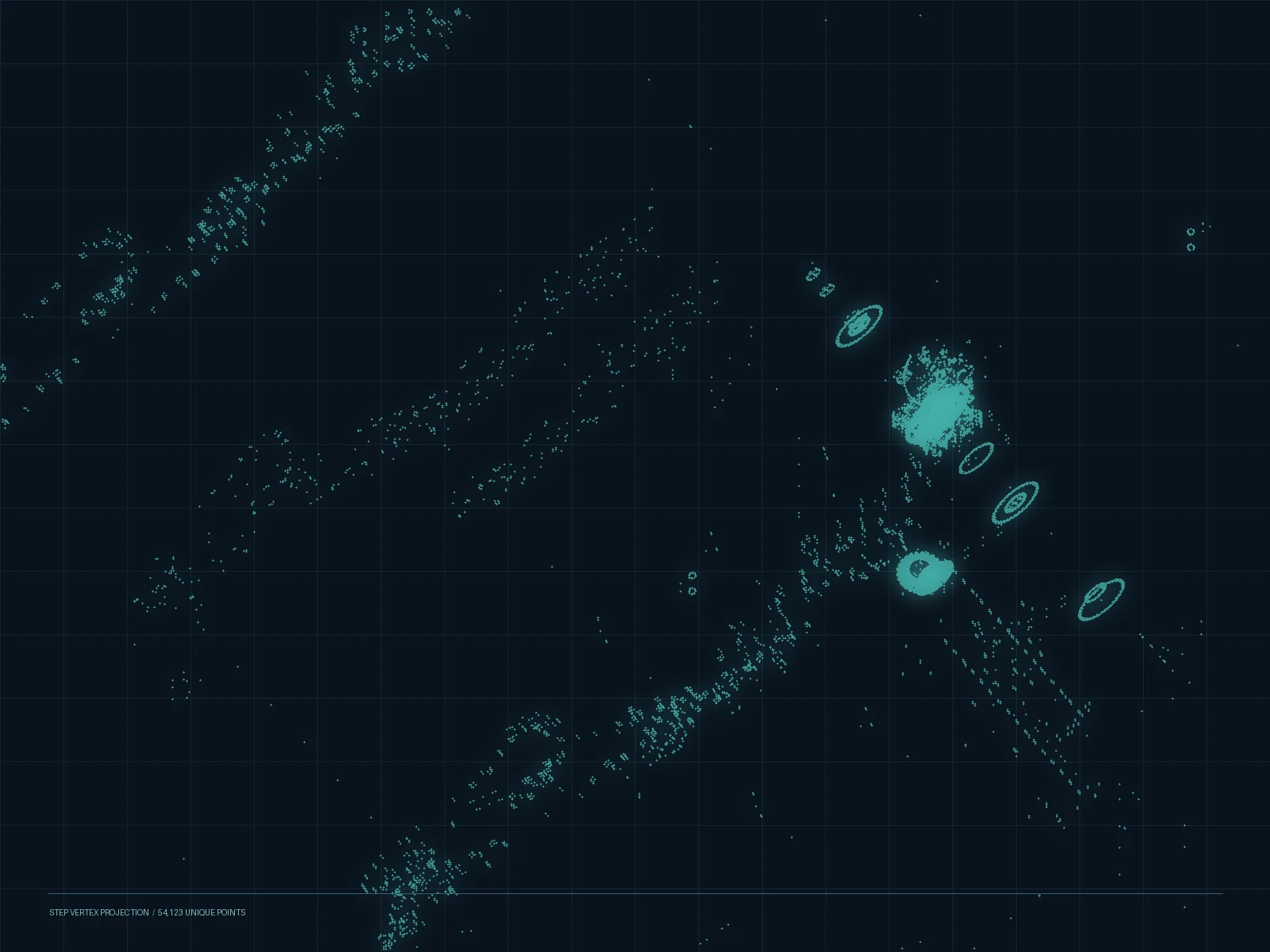

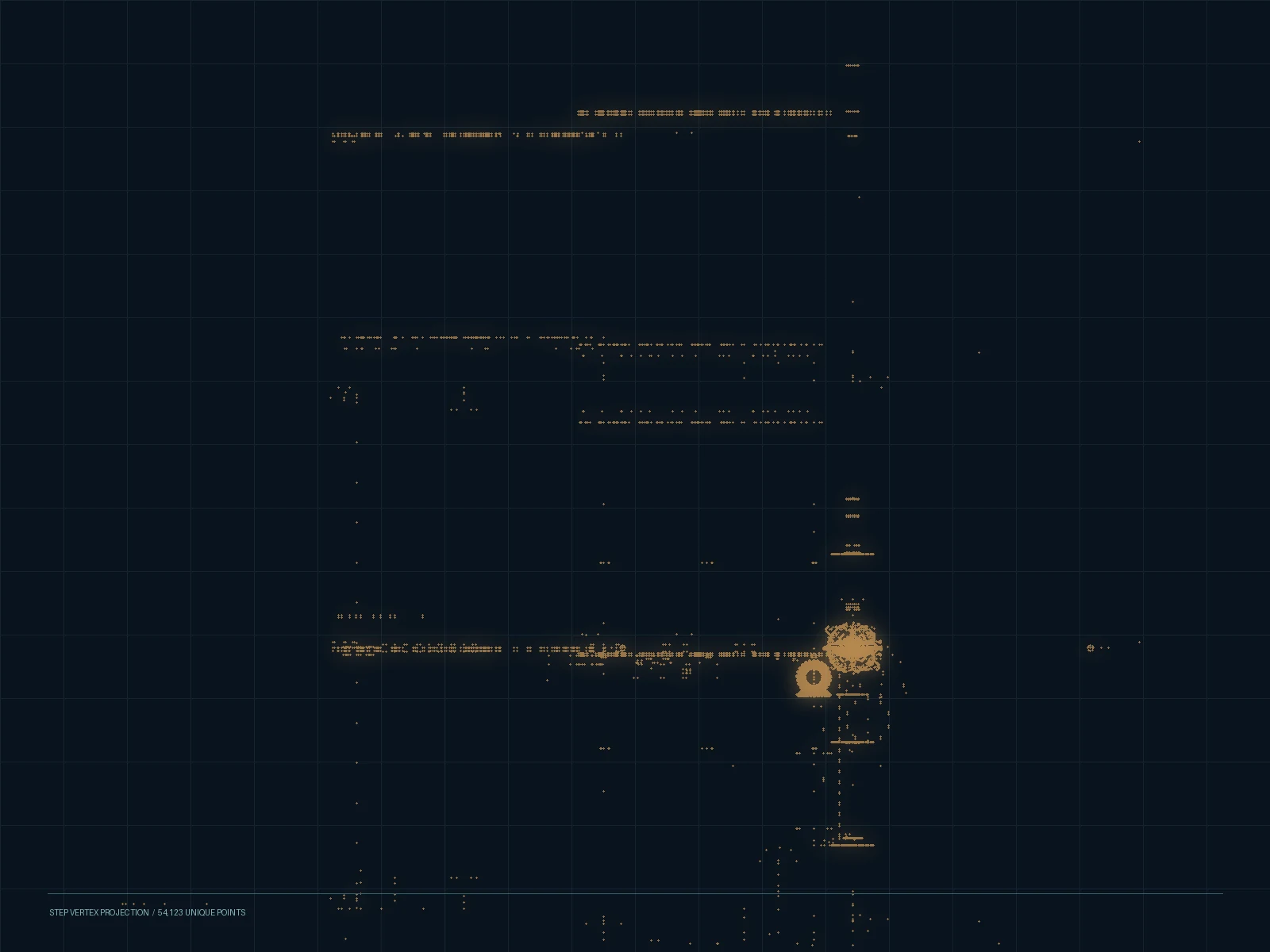

Top projection of geometric points from the intake STEP model.01 / STEP PROJECTION
MECHANISM / 01

Intake system

The intake assembly appears in both the 3.5 and 3.7 robot folders. A native SolidWorks assembly and a STEP export make this mechanism directly inspectable.

Explore its geometry
TURRET / ASSEMBLYREVISION RECORD
V2SLDASM
V3SLDASM
SOURCE ARCHIVE · 2026
ITERATION / 02

Turret revisions

The archive preserves separate turret V2 and V3 assemblies, with V3 also present in the later 3.7 robot folder. The version trail is part of the work.

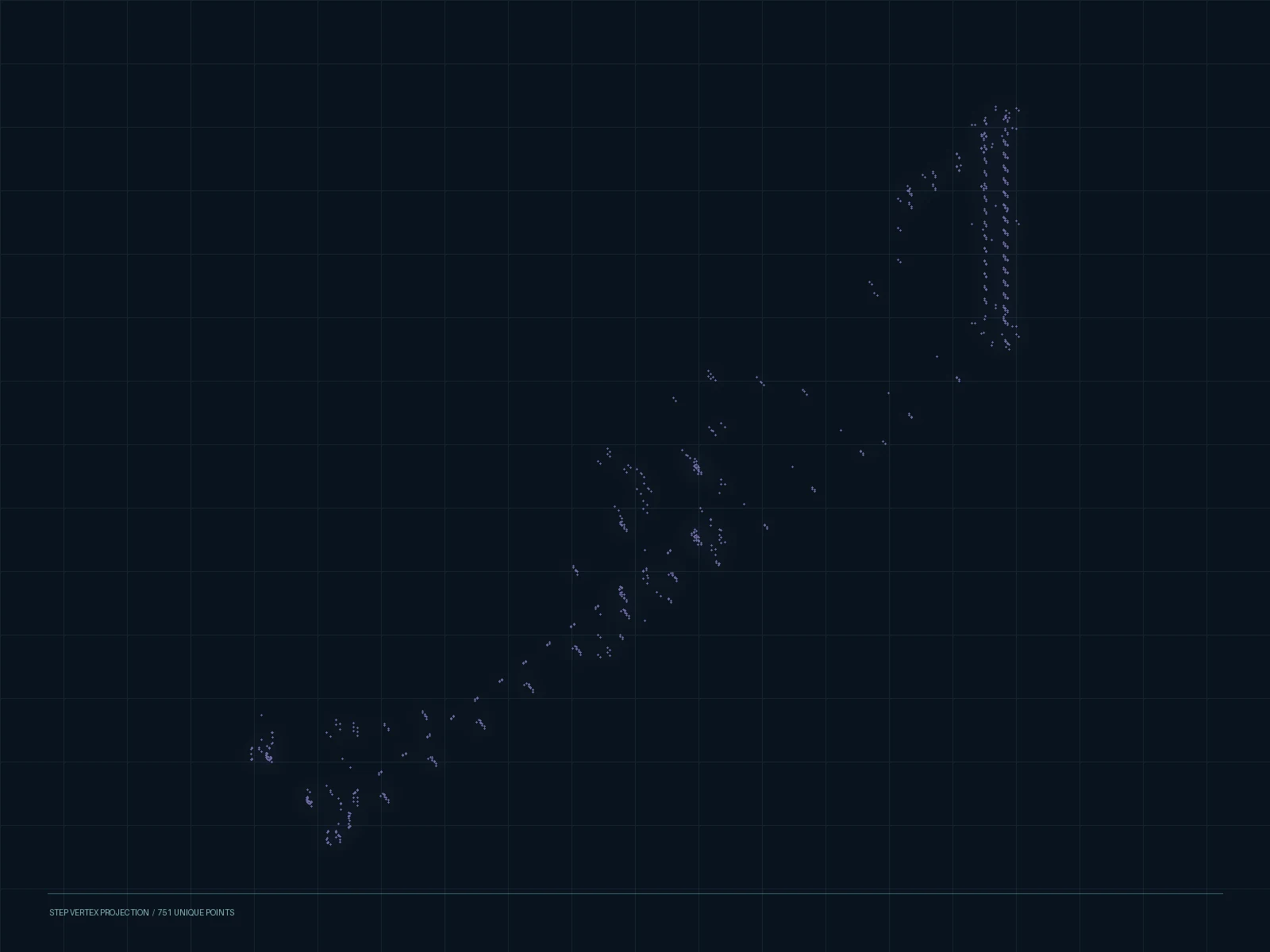

Point projection generated from the actual hopper assembly STEP geometry.03 / STEP PROJECTION
MECHANISM / 03

Hopper assembly

A separate hopper assembly and STEP export appear in the 3.5 robot files. The geometry preview here is generated from that export.

Download STEP
FULL ROBOT ASSEMBLY MAP
TOTAL
ASSEMBLY
INTAKE
TURRET
HOPPER
CLIMB
CHASSIS
V3.5 → V3.7
INTEGRATION / 04

From parts to robot

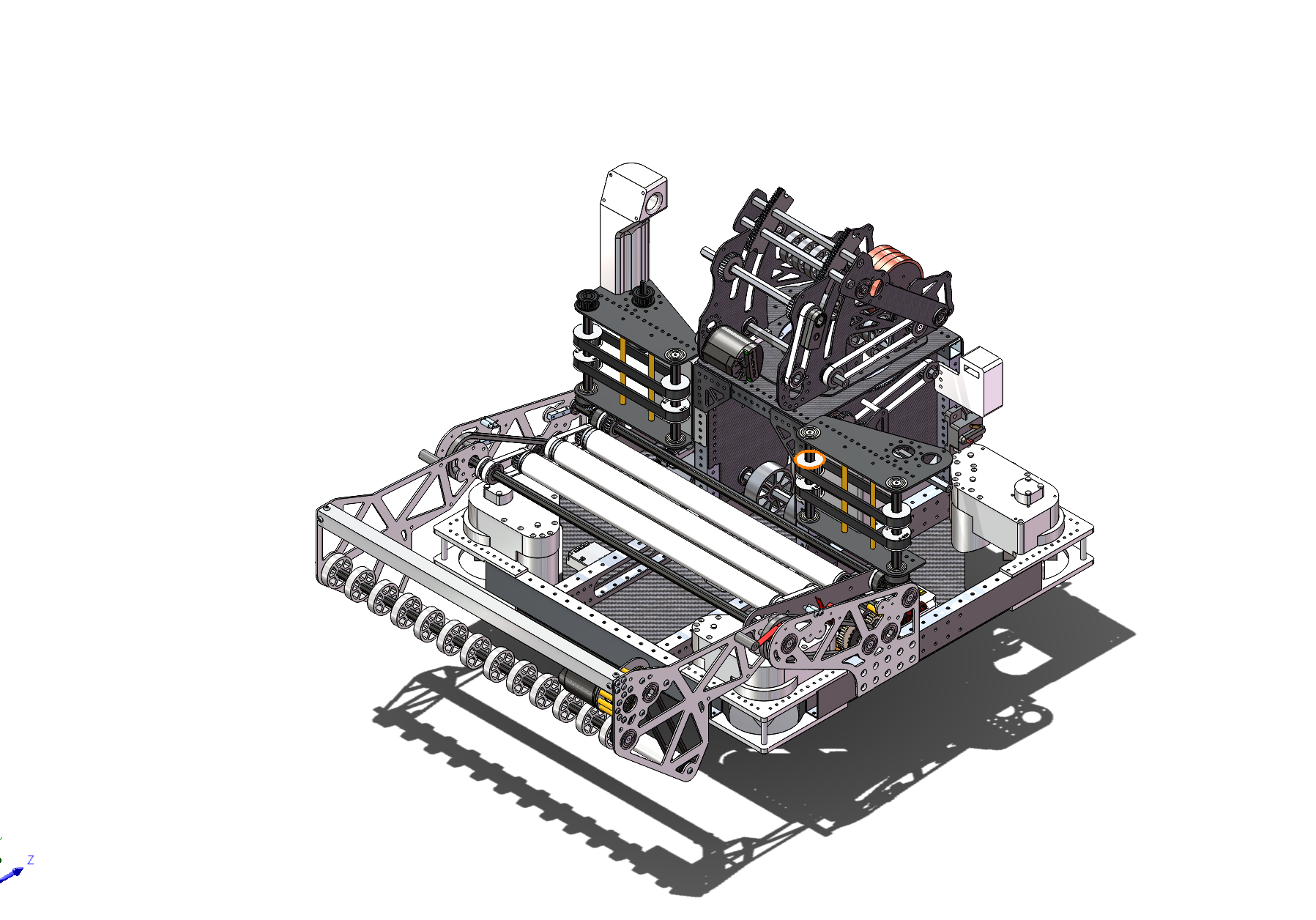

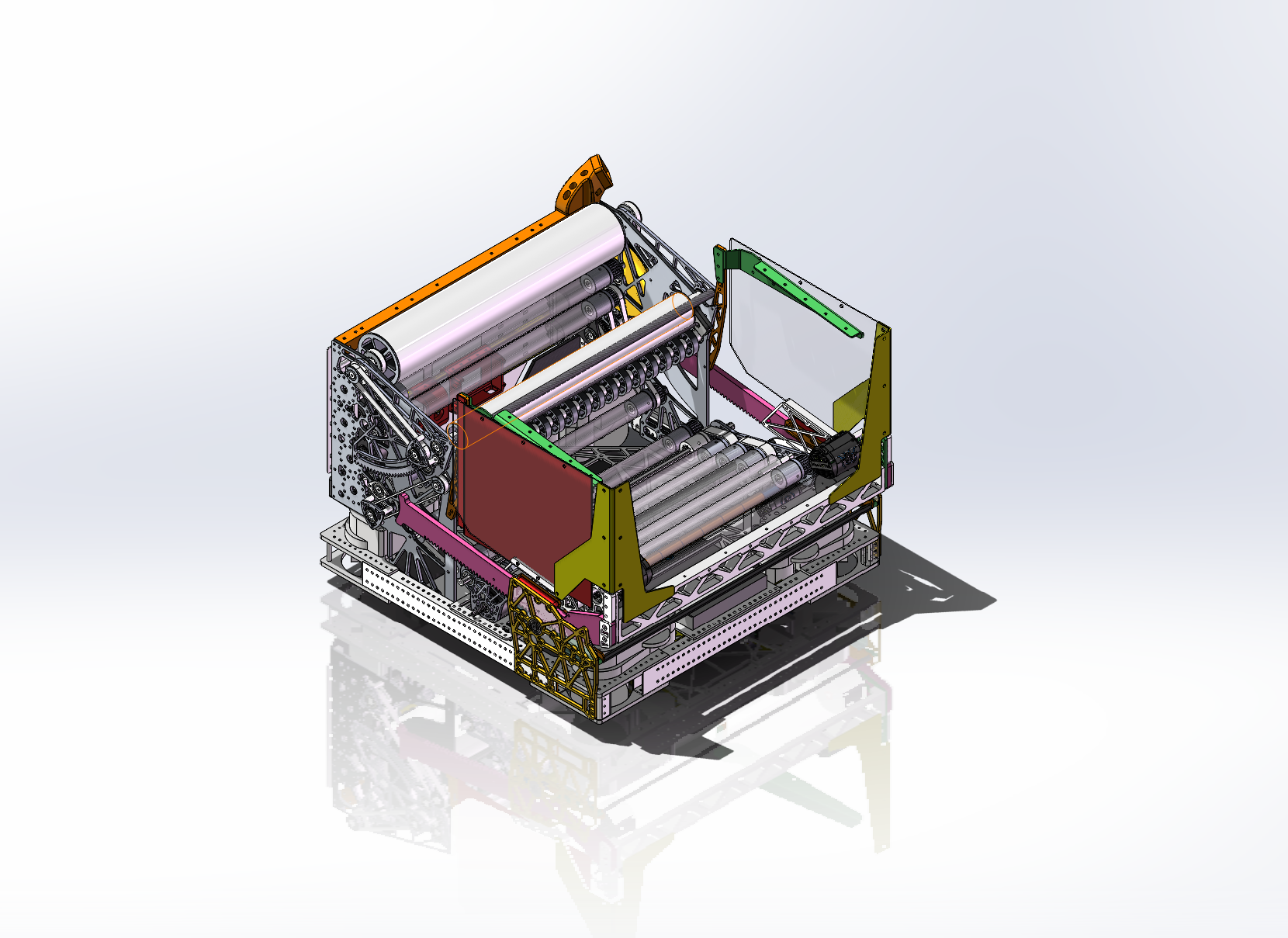

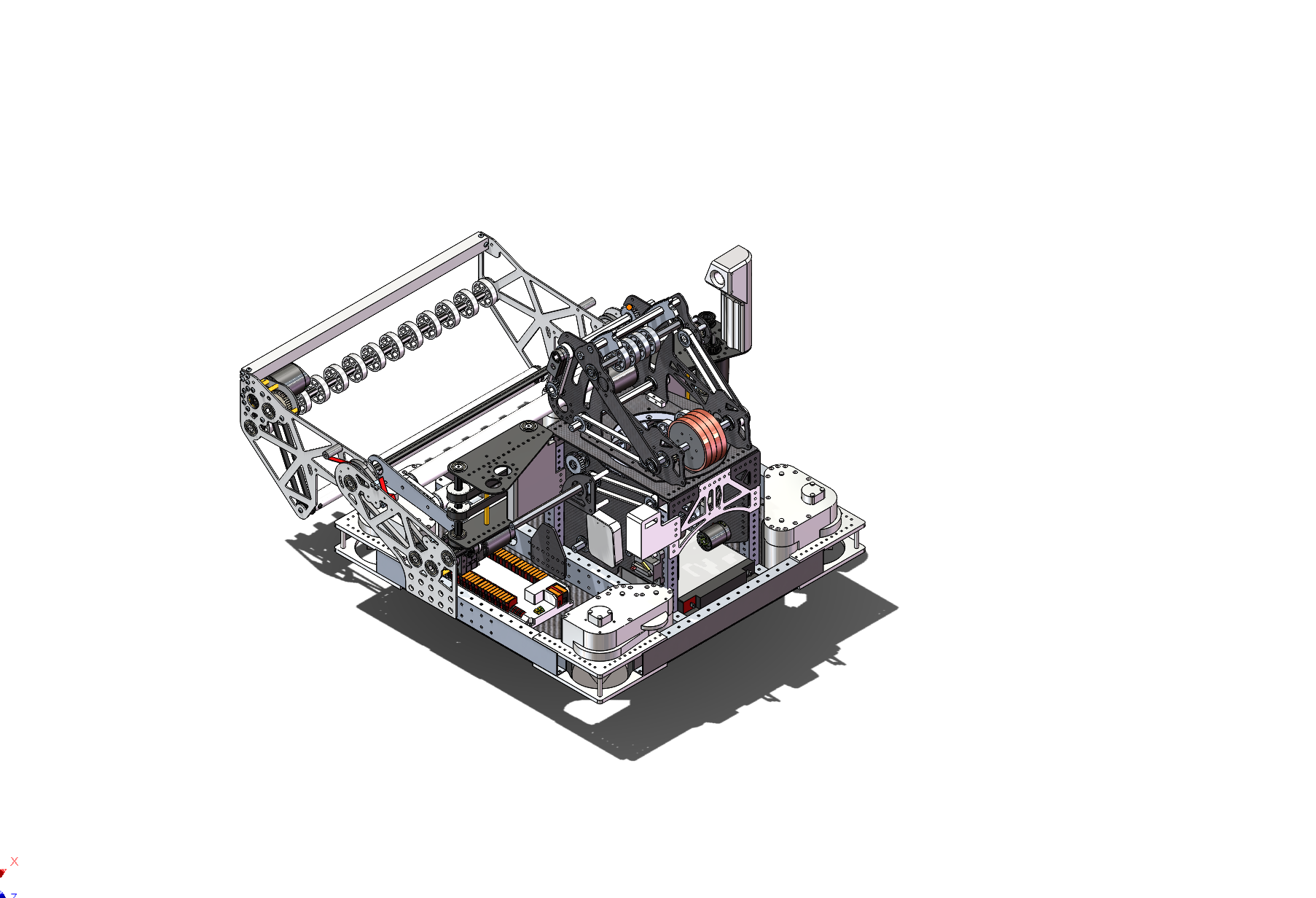

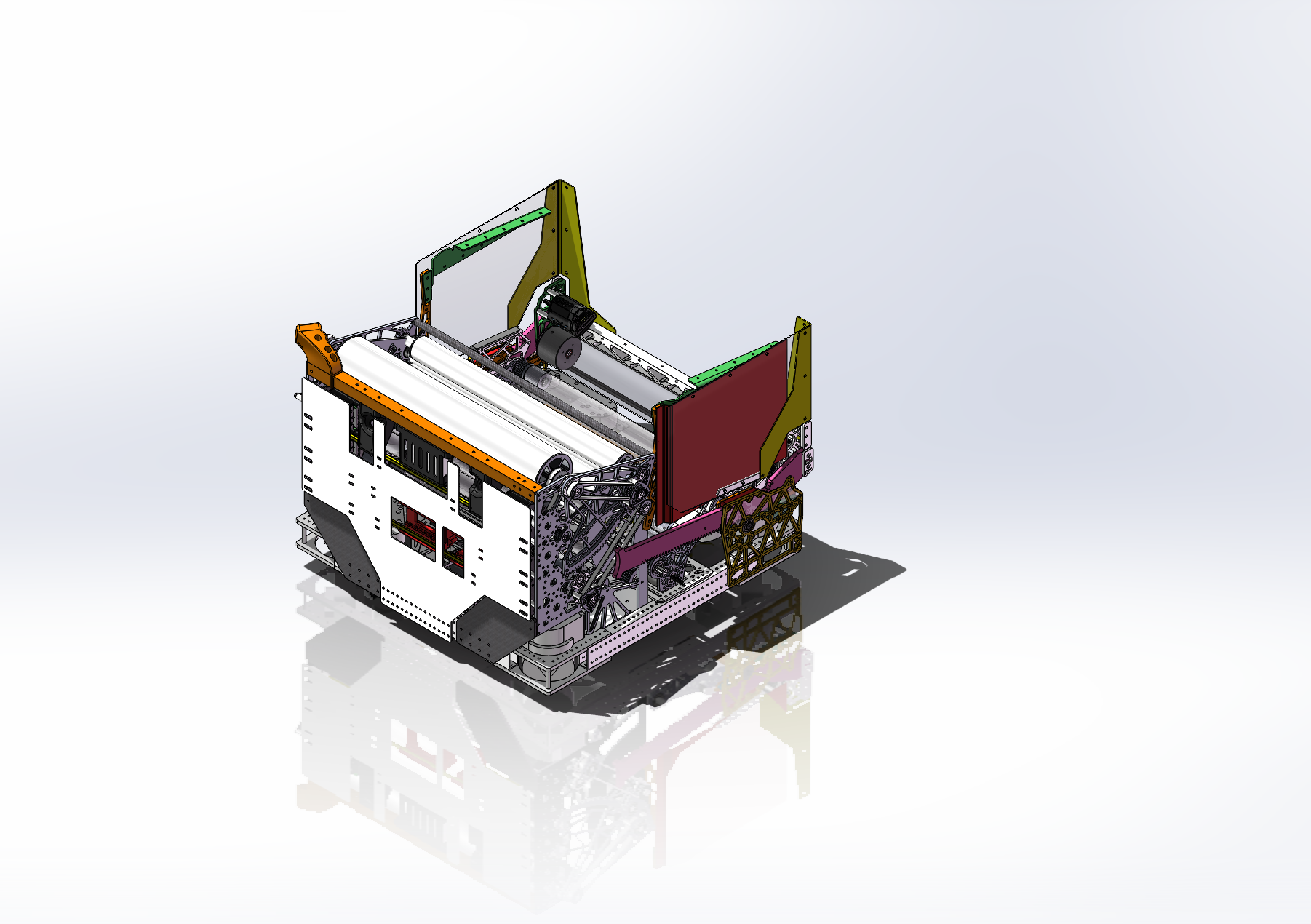

Full robot assemblies are saved in the 3.5 and 3.7 source folders. Intake, turret, hopper, chassis, and climb subassemblies sit within that wider design record.

04 / INTERACTIVE CAD STUDY

Rotate the real geometry.

These points come from the Cartesian geometry in my STEP exports. Drag to turn the model. This is a geometric preview rather than a shaded surface render.

STEP DATA VIEWER
Intake STEP point projection.
INTAKE / FRC 2026 3.7DRAG TO ROTATE DOWNLOAD STEP

05 / UNDERLYING FILES

Inspect the source.

The archives contain native SolidWorks parts and assemblies, plus STEP, DXF, and STL exports. These selected files can be opened independently to inspect the geometry and fabrication output.

Intake assembly FRC 2026 3.7 / STEP export13.7 MB · .STEP Hopper assembly FRC 2026 3.5 / STEP export344 KB · .STEP Intake chassis bracket July 13 archive / fabrication DXF118 KB · .DXF Camera light mount July 13 archive / PETG print STL118 KB · .STL
ARCHIVE NOTES

Additional native assemblies in the supplied files include turret V2/V3, elevator and carriage, a June 28 intake assembly, and full robot assemblies from the 3.5 and 3.7 folders. The July 13 archive also holds manufacturing exports for individual parts and a full assembly STEP file; the latter is too large for this site's direct download. Standard and vendor components in the source archives belong to their respective makers.

06 / ABOUT

Design is a record
of decisions.

I’m Justin Yin. I use CAD to move from an idea for a mechanism to a buildable robot system. This portfolio is a direct view into my FRC 2026 design files and the iterations preserved within them.
